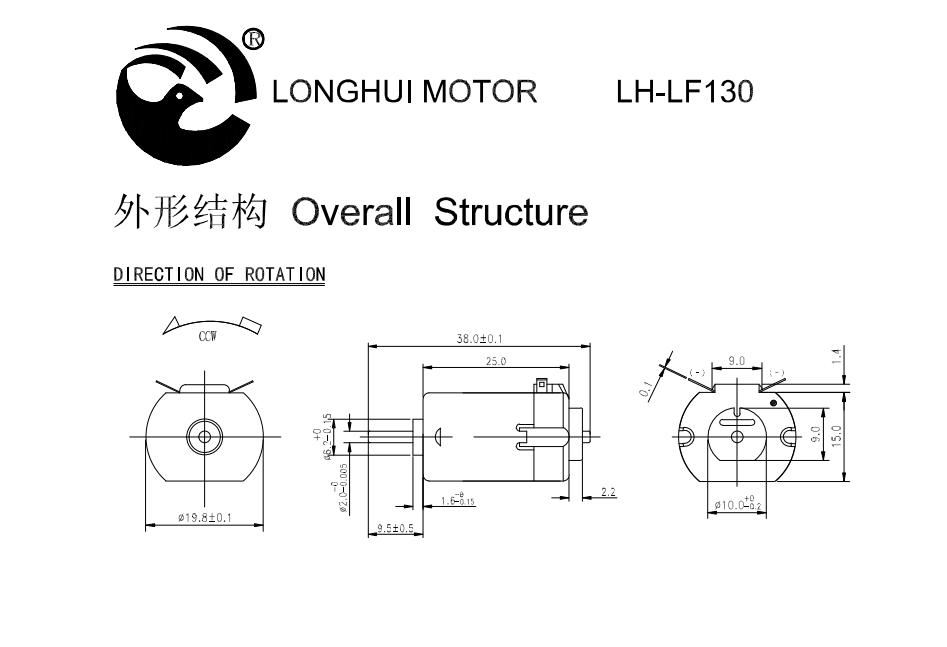

LH-LF130 DC toy motor

SPEED：10300

CURRENT：0.580

TORQU：9.0

OUTPUT：0.96

Consultation

Product Details

型号 MODEL	电压 VOLTAGE		无负荷 NOLOAD		最大效率点 AT MAXIMUM EFFICIENCY					扭力STALL
	使用范围 OPERATING RANGE	额定值NOMINAL	转速SPEED	电流 CURRENT	转速SPEED	电流CURRENT	转矩TORQUE	功率OUTPUT	效率 EFF	扭力STALL
	使用范围 OPERATING RANGE	额定值NOMINAL	rpm	A	rpm	A	g.cm	W	%	g.cm
LFF130A-18100-38V	1.5-6.0V	3VCONSTANT	13500	0.200	10300	0.580	9.0	0.96	56.1	36.0
LFF130SA-2286-38V	1.5-6.0V	3VCONSTANT	11000	0.160	8938	0.690	15.0	1.38	59.2	80.0
LFC130SA-07760-32V	6.0-14.0V	12VCONSTANT	4100	0.018	3129	0.050	9.0	0.29	49.6	38.0
